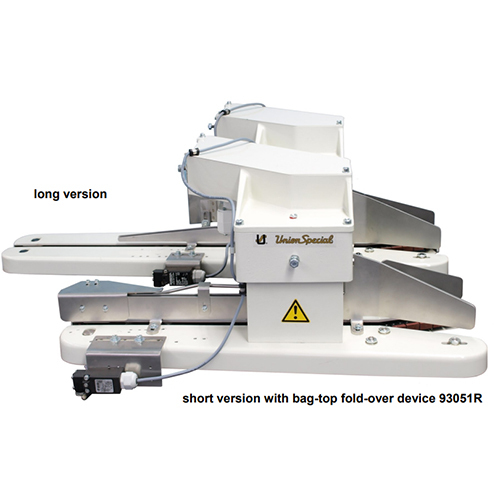

Bag-Closing Unit KBVA for small Bags
Product Details:
- Material Stainless Steel
- Condition New
- Product Type Bag-Closing Unit KBVA for small Bags
- Color Sliver
- Click to View more
X
Bag-Closing Unit KBVA for small Bags Product Specifications
- Bag-Closing Unit KBVA for small Bags
- Stainless Steel
- New
- Sliver
Bag-Closing Unit KBVA for small Bags Trade Information
- 50000 Per Month
- 7-10 Days
Product Description
Special Features:
- Compact sewing column for optimized space
- Robust design for guaranteed long life cycle
- Customized adaptations:
- Bag feed-in device
- Electro-pneumatic fold-over device for folded bag opening
- Guide rails for flexible positioning of add-ons and improved maintenance
- Small high-performance bag-closing machine
- Small belt-type conveyor
- Movable base for change of location and easier maintenance / cleaning
- Short set-up times due to modular system
- Flexibility due to adaptation to location
- Variety of bag sizes due to motor-driven height adjustment
- Fold-over for min. 8 cm freeboard possible
- User-friendly operation
1600A:
- The sewing column is the supporting structure and control unit for the sewing head and additional applications (bag feed-in device, guide rails etc.).
- Telescopic column with motor driven height adjustment, range of adjustment 400 mm (Mounting points all 50 mm, 900 mm to 1300 mm from lower edge column to needle)
- Control box with Siemens PLC for controlling the unit and additional applications.
- Driven by AC drive motor for 220 - 240 V/380 - 415 V, 50 Hz, 0.25 kW IP54.
- Support with slide bearing for easy maintenance.
2200AZ4015FAN:
- The two thread bag closing machine with combined top and bottom feed guarantees an even feed and constant stitch length even on difficult materials.
- Equipped with rust-protected sewing parts
- Reliable cutting by horizontal thread chain cutter
- Capacity up to 10 mm
- Adjustable stitch length 7 - 10 mm
- Sewing speed 1200 - 1700 SPM
BF39970A:
- The bag feed-in device assists the improved feeding of bags in continuous and guaranteed quality with
- the option of folding the bag opening automatically.
- Equipped with belt drives
- Defined feeding of bag opening
- Electro-pneumatic fold-over device for continuous
- and guaranteed quality. Frequency controlled speed.
